When a multi story or single story steel building is being designed there are many components that you have to consider. From the frame, walls, roof, floor and so on, the engineer has many factors that need to be accounted for.
One major component is the metal decking floor system. There are many ways to design and construct a stronger metal decking floor system. However, not all design options are best.
Most of your options to make the floor system stronger require adding extra weight, which has an impact on other aspects of the building such as the steel framing.

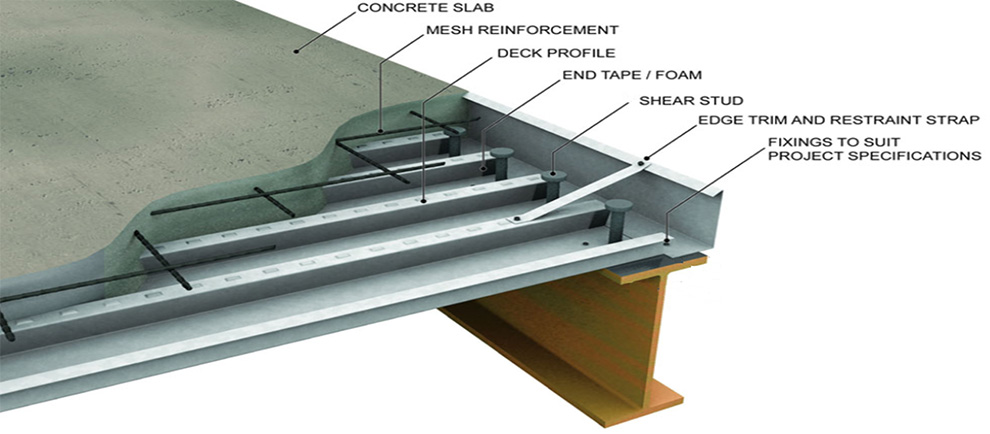

Composite metal floor deck systems are designed to be a solution to this specific problem. The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight.
DECKING-50.
DECKING-50is the composite steel floor decking systems joins steel & concrete. Suitable for multi-rise building, with effective span and excellent performance, custom length as required.

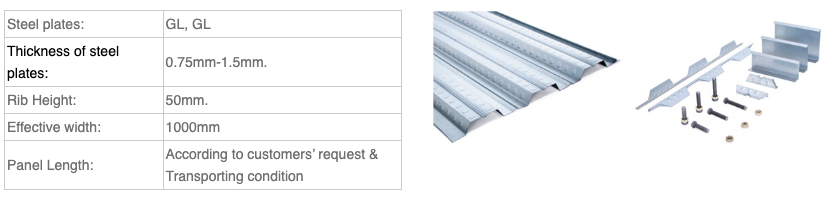

Product Parameters
| Steel plates: | GL, GL |
|
Thickness of steel plates:
|
0.75mm-1.5mm. |
| Rib Height: | 50mm. |
| Effective width: | 1000mm |
| Panel Length: | According to customers’ request & Transporting condition |
System Features:
The composite floor bearing plate bears the construction load during the construction phase, works with the concrete in the use stage, bears the use load, and gives full play to the characteristics of the steel and concrete materials.
It has many features. Such as, light weight, high strength, strong rigidity, simple construction and standardized production at the factory.
DECKING-75.
DECKING-75is the composite steel floor decking systems joins steel & concrete. Suitable for multi-rise building, with effective span and excellent performance, custom length as required. DECKING-75 provide better higher-rib profile, ability for load on span, deflection better than DECKING-50

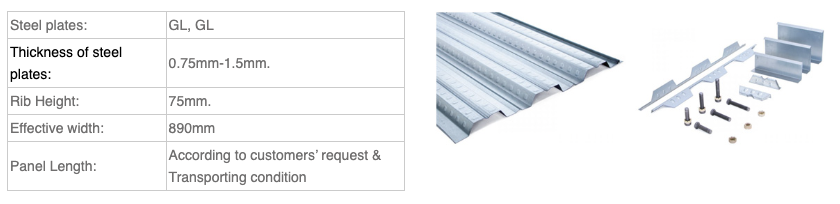

Product Parameters
| Steel plates: | GL, GL |
|
Thickness of steel plates:
|
0.75mm-1.5mm. |
| Rib Height: | 75mm. |
| Effective width: | 890mm |
| Panel Length: | According to customers’ request & Transporting condition |
System Features:
The composite floor bearing plate bears the construction load during the construction phase, works with the concrete in the use stage, bears the use load, and gives full play to the characteristics of the steel and concrete materials.
It has many features. Such as, light weight, high strength, strong rigidity, simple construction and standardized production at the factory.
